Product Description

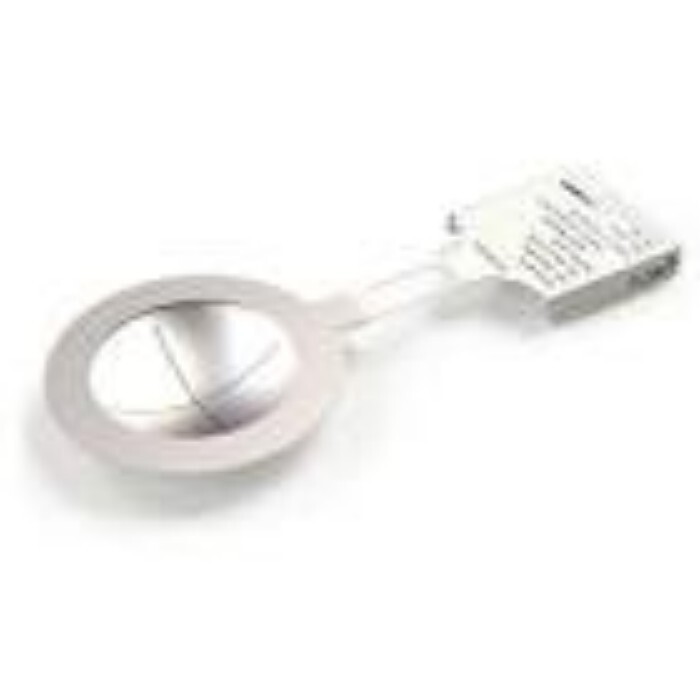

A High Pressure Reverse Buckling Rupture Disc is a non-reclosing pressure relief device specifically engineered for high-pressure applications where precise burst performance, excellent fatigue resistance, and superior leak tightness are required. In a reverse buckling design, the dome is installed with the convex side facing the process pressure. As pressure increases to the specified burst pressure, the dome buckles in the reverse direction and opens along precision-cut knife blades or scoring patterns, providing rapid and reliable pressure relief.
Key Features
- Designed for high-pressure service applications.
- Reverse buckling technology provides highly accurate burst pressures.
- Excellent resistance to pressure cycling and pulsating pressures.
- High operating ratio, typically up to 9095% of the minimum burst pressure.
- Non-fragmenting opening design for enhanced safety.
- Leak-tight performance, reducing product loss and emissions.
- Suitable for gas, liquid, vapor, and multiphase process systems.
- Available in corrosion-resistant materials such as Stainless Steel, Inconel, Hastelloy, Monel, Nickel, and other specialty alloys.
- Optional burst indicators for remote monitoring and system integration.
Advantages
- Suitable for very high burst pressure ratings.
- Longer service life under cyclic pressure conditions compared to conventional forward-acting discs.
- Reduced risk of fatigue failure.
- High reliability and repeatable burst performance.
- Lower maintenance requirements due to robust construction.
Typical Applications
- Oil and gas production and processing facilities
- Petrochemical and chemical plants
- Hydrogen and industrial gas systems
- High-pressure reactors and pressure vessels
- Power generation facilities
- Compressor discharge protection
- Aerospace and defense pressure systems
- Pharmaceutical and specialty chemical processing
Technical Product Description
A High Pressure Reverse Buckling Rupture Disc is a precision-engineered pressure relief device designed for reliable overpressure protection in demanding high-pressure applications. The reverse buckling dome construction provides exceptional fatigue resistance, high operating ratios, and accurate burst performance. Upon reaching the specified burst pressure, the dome reverses direction and opens rapidly, delivering full-flow pressure relief while maintaining leak-tight operation during normal service. The disc is ideally suited for systems subject to pressure cycling, corrosive media, and stringent safety requirements.
Advanced Overpressure ProtectionOur reverse buckling rupture disc is specifically designed to safeguard your high-pressure systems. The stainless steel material ensures reliability and resistance to corrosion, while the compact 10 cm design facilitates easy integration. It acts as a crucial safety device by rupturing precisely at preset pressures, preventing equipment damage and enhancing operational safety.
Reliable Supply from IndiaAs a reputable source in India, we excel as exporters, manufacturers, suppliers, and traders of high-quality rupture discs. Our extensive experience enables us to serve diverse industries with prompt deliveries and strict quality control, assuring you of consistent and effective pressure relief solutions.
FAQ's of High Pressure Reverse Buckling Rupture Disc:
Q: How does the High Pressure Reverse Buckling Rupture Disc function in a system?
A: The disc is engineered to buckle in the reverse direction when exposed to excessive pressure, creating an immediate opening. This rapid response releases the excess pressure, thus protecting both personnel and equipment from potential damage.
Q: What materials are used in manufacturing this rupture disc, and why?
A: The rupture disc is made from stainless steel (SS), chosen for its exceptional mechanical strength, resistance to corrosion, and durability under high-pressure conditions, ensuring long-lasting and safe operation.
Q: When should I install or replace this rupture disc?
A: The disc should be installed during the commissioning of your pressure system or whenever regulations and safety audits require it. Replacement is recommended either after the disc has activated or as per scheduled maintenance intervals advised for your system.
Q: Where is this product manufactured and supplied from?
A: This High Pressure Reverse Buckling Rupture Disc is manufactured, exported, and supplied from India, providing reliable global delivery through our strong distribution network.
Q: What is the typical process for installation and maintenance of the rupture disc?
A: Installation involves securing the disc in the designated holder within the pressure system. Regular inspections are advised, and the disc should be replaced if it shows signs of damage or after activation to ensure continued protection.
Q: How can the benefit of using this rupture disc be summarized?
A: The primary benefit is its ability to give immediate overpressure relief, improving safety and reducing downtime in industrial environments. Its stainless steel construction further enhances resilience, reliability, and operational longevity.
