Product Description

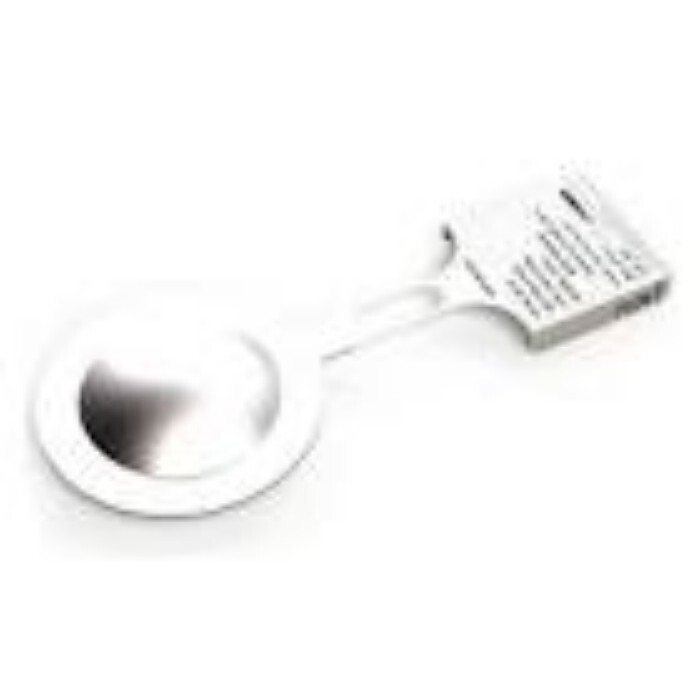

Pre-Bulged Forward Acting Rupture Disc Description
A Pre-Bulged Forward Acting Rupture Disc is a non-reclosing pressure relief device designed to protect pressure vessels, piping systems, and process equipment from overpressure conditions. The disc is manufactured with a pre-formed dome (pre-bulged shape) and installed with the convex side facing away from the process pressure. Under normal operating conditions, the disc withstands system pressure without deformation. When the pressure reaches the specified burst rating, tensile stresses cause the dome to rupture along a predetermined scored pattern, providing rapid and full-bore pressure relief.
Key Features
- Pre-formed domed design for accurate and repeatable burst performance.
- Forward-acting configuration suitable for low, medium, and high-pressure applications.
- High operating ratio, typically up to 8590% of the minimum burst pressure.
- Excellent fatigue resistance under pressure cycling conditions.
- Non-fragmenting opening design for enhanced system safety.
- Leak-tight sealing suitable for gas, liquid, vapor, and two-phase services.
- Available in a wide range of materials, including stainless steel, nickel alloys, Hastelloy, Inconel, and other corrosion-resistant materials.
- Compatible with burst detection systems for remote monitoring.
Working Principle
The pre-bulged dome remains stable during normal operation. As system pressure increases to the rated burst pressure, tensile stresses develop in the scored section of the disc. Once the design pressure is reached, the disc ruptures along the score lines and opens rapidly, relieving excess pressure and protecting downstream equipment from damage.
Typical Applications
- Chemical and petrochemical processing
- Oil and gas facilities
- Pharmaceutical manufacturing
- Power generation plants
- Pressure vessels and reactors
- Heat exchangers
- Storage tanks and process piping systems
Technical Product Description
A Pre-Bulged Forward Acting Rupture Disc is a precision-engineered pressure relief device featuring a pre-formed domed construction and controlled scoring technology for accurate burst performance. Designed for reliable overpressure protection, the disc offers high operating ratios, excellent fatigue resistance, leak-tight sealing, and rapid full-opening characteristics. It is suitable for gas, liquid, vapor, and multiphase applications across a wide range of industrial processes where dependable pressure relief is critical to system safety and equipment protection.
Precision Over-Pressure ProtectionEngineered using advanced pre-bulged forward acting technology, this rupture disc ensures instant, reliable safety by bursting at preset pressures between 0.5 and 200 bar. Designed for challenging applications, it operates effectively even at extreme temperatures and provides a rapid, fail-safe response to over-pressure scenarios.
Versatile & Durable DesignAvailable in sizes from 1/2" to 24" diameter, this rupture disc can be installed horizontally or vertically to adapt to various setups. Crafted from corrosion-resistant alloys with polished or passivated surfaces, it is suitable for use with a wide range of service media, including aggressive gases, vapors, and liquids.
Certified for Compliance & QualityEach disc complies with leading international standards such as ASME Section VIII and PED 2014/68/EU. With laser marking for traceability and quality assurance, it is supplied maintenance-free with an impressive five-year shelf life when kept in original packaging.
FAQ's of Pre-Bulged Forward Acting Rupture Disc:
Q: How does the pre-bulged forward acting rupture disc provide over-pressure protection?
A: The disc is designed to rupture instantaneously at a predetermined pressure (between 0.5 bar and 200 bar), releasing excess pressure safely and preventing damage to vessels, pipelines, or tanks. The pre-bulged design enhances precision and responsiveness.
Q: What types of service media are compatible with this rupture disc?
A: This rupture disc is engineered for use with gases, vapors, and liquids. Its high corrosion resistance depends on the chosen alloy, making it suitable for a wide range of industries and substances.
Q: When should I replace the rupture disc?
A: The rupture disc is a single-use, maintenance-free device and must be replaced immediately after it bursts. In original packaging, it has a shelf life of five years.
Q: Where can the disc be installed in my system?
A: It can be installed horizontally or vertically in pressure vessels, pipelines, reactors, or storage tanks, ensuring seamless integration in various orientations and system layouts.
Q: What is the process for selecting the appropriate disc size and material?
A: Selection depends on the application's burst pressure requirements, operating temperatures, media compatibility, and size of the installation point (available from 1/2" to 24"). Consulting the manufacturer is advised for optimal performance, especially regarding back pressure tolerance and corrosive environments.
Q: How does this disc benefit my operation compared to traditional safety valves?
A: It offers instantaneous pressure relief with a non-fragmenting, leak-proof design, ensuring rapid response and minimizing downtime. Its maintenance-free nature reduces operating costs and its strict compliance with major standards assures reliability and safety.
